51.2V 5.12KW 100Ah Lithium-Ion Battery Energy Storage Solar Wall-mounted for household use

PRODUCT FEATURE

Modular Design , Excellent Protection , Easy Installation ,

Safest Chemistry , Long Lifespan

Application Area

Home photovoltaic energy storage, through the inverter

conversion for AC home appliances to provide power.

Product Dimensions

W408x D180x H650mm

Weight

48.5

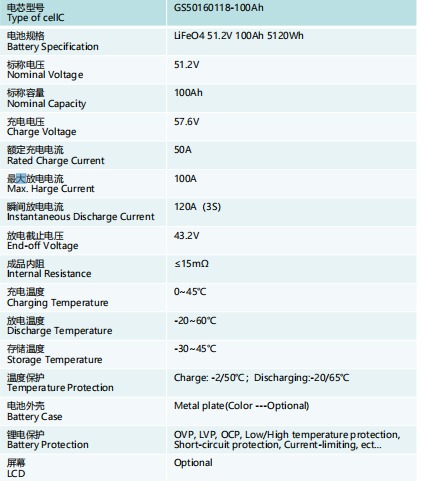

Type of cell: GS50160118-100Ah

Battery Specification: LiFeO4 51.2V 100Ah 5120Wh

Nominal Voltage: 51.2V

Nominal Capacity: 100Ah

Charge Voltage: 57.6V

Rated Charge Current: 50A

Max. Harge Current: 100A

Instantaneous Discharge Current: 120A (3S)

End-off Voltage: 43.2V

Internal Resistance: ≤15mΩ

Charging Temperature: 0~45℃

Discharge Temperature: -20~60℃

Storage Temperature: -30~45℃

Temperature Protection: Charge:-2/50℃; Discharging:-20/65℃

Battery Case: Metal plate(Color ---Optional)

Battery Protection: OVP, LVP, OCP, Low/High temperature protection, Short-circuit protection, Current-limiting, ect...

LCD: Optional
