PRODUCT FEATURE
Modular Design, Excellent Protection, Easy Installation,
Safest Chemistry, Long Lifespan
Application Area
Home photovoltaicenergy storage,through the inverter
conversion for AC home appliances to provide power.
Product Dimensions
W465 x D155x H685mm
Weight
47.5kg

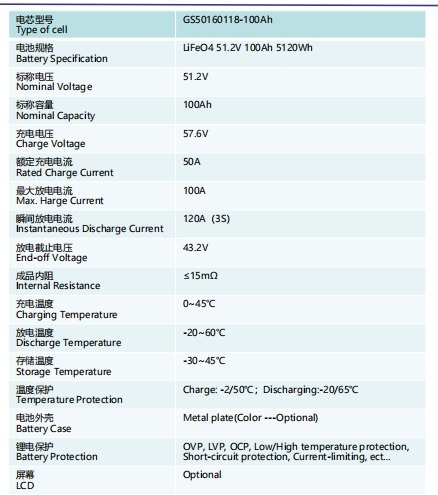

Battery model: GS50160118-100Ah
Type of cell: LiFeO4 51.2V 100Ah 5120Wh
Battery Specification: 51.2V
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Charge Voltage: 57.6V
Rated Charge Current: 50A
Max. Discharge Current: 100A
Instantaneous Discharge Current: 120A (3S)
End-off Voltage: 43.2V
Internal Resistance: ≤15mΩ
Charging Temperature: 0~45℃
Discharge Temperature: -20~60℃
Storage Temperature: -30~45℃
Temperature Protection: Charge:-2/50℃; Discharging:-20/65℃
Battery Case: Metal plate (Color ---Optional)
Battery Protection: OVP, UVP, LVP, High/Low temperature protection, Short-circuit protection, Current-imititing, etc..
Screen: Optional户外电动设备电源
